Our factory at Mahape, Navi Mumbai has following set up:

Fabrication Shop :
  • Most ModernCNC Shearing machine, bending machinefor Sheet MetalProcessing. All CRCA sheets steel undergoes process for cutting and bending through these CNC machine.
  • Argon welding machine for quality welded joints.
  • Joints of any kind in sheet metal seam iswelded.Allwelding slagis rounded off and welding pits wiped with smooth plumber metal.
  • Stage inspection is done after the fabrication, to ascertain the accuracy of the structure. Strict adherence to quality control & supervision by in-house engineers at each & every stage.
  • All steel work undergoes a seven tank process comprising alkaline degreasing, descaling in dilute sulphuric acid, cold rinsing, phosphating and passivating.
  • Metal treatment is followed by electrostatic powder Coating. Thickness is not less than 50 micron .The paint shade for panel inside/ outside shall be RAL 7032 or Light Grey shade 631 as per Is5.
  • The panel is baked in the oven after powder coating applied at a temperature of 160-240 c for half an hour.
  • The oven baking provides the panel more durability and also helps in provision of longevity of the same. This also provides the function of drying, curing and protects the surface of the panel from damages.
  • Due to baking of panel in the oven, powder coating is more adhesive and hence is aesthetic in appearance with long lasting durability of the product.
  • It also prevents panel from rusting. Hence it improves the durability of the panel.
Assembly Shop :
  • Complete powdercoated structure comes for the assemblyshop;where in gasketing of the doors are done through self adhesive neoprene gaskets to ensure dust and vermin proof.
  • Aluminum or copper bus bars as per the specifications are processed through hydraulic type busbar processing machines.Flawless accurate cutting,bending and punching of the busbars done to ensure the good quality.
  • Epoxy insulators are used to mount the busbars and zinc passivated hardware is used for fixing the components during the assembly.
  • High quality wires are used for power and control wiring;withproper ferruling and marking as per the drawings.
  • Wires are properly tied and enclosed through proper PVC channels.
  • As per the requirements switchgears,metersetc are mounted inside the compartments and connected with proper sleeved busbars or power wires and terminated in the cable chamber through properly rated terminals.
  • Completed panels are tested in the factory as per the per IS: 2147 norms.
  • Following Routine tests are conducted within house. Integrated digital test setand results are recorded in the prescribed format,which in turn forms the document.
    1. 1. HV testing for 2KV for 1minute power frequency
    2. 2. Megger test with 2000KV Megger
    3. 3. Operation test by giving the supply
    4. 4. Physical measurement as per the approved drawings.
    5. 5. Meter Calibration and programming.

Our Various Products & Solutions

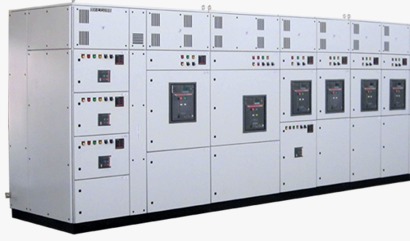

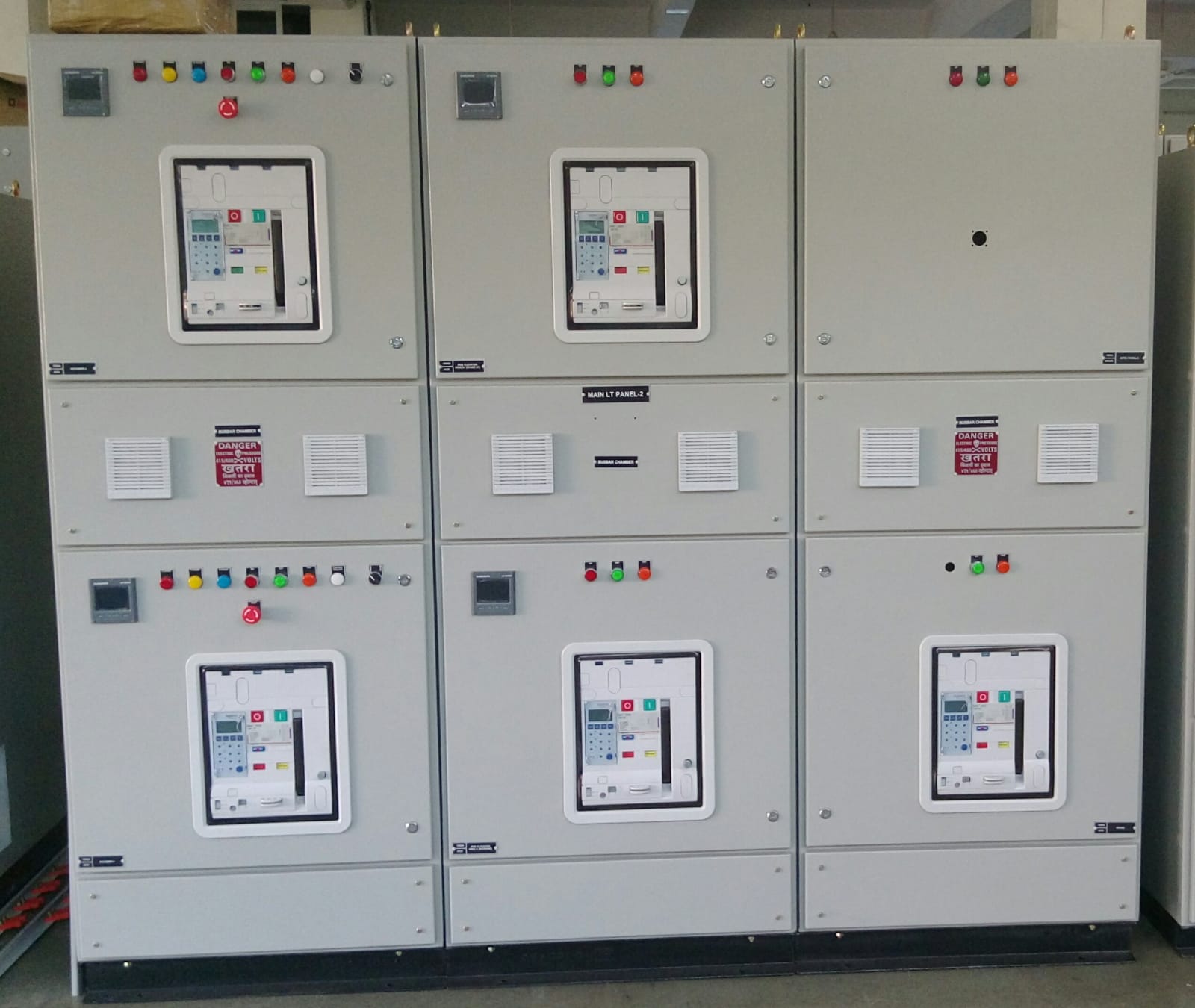

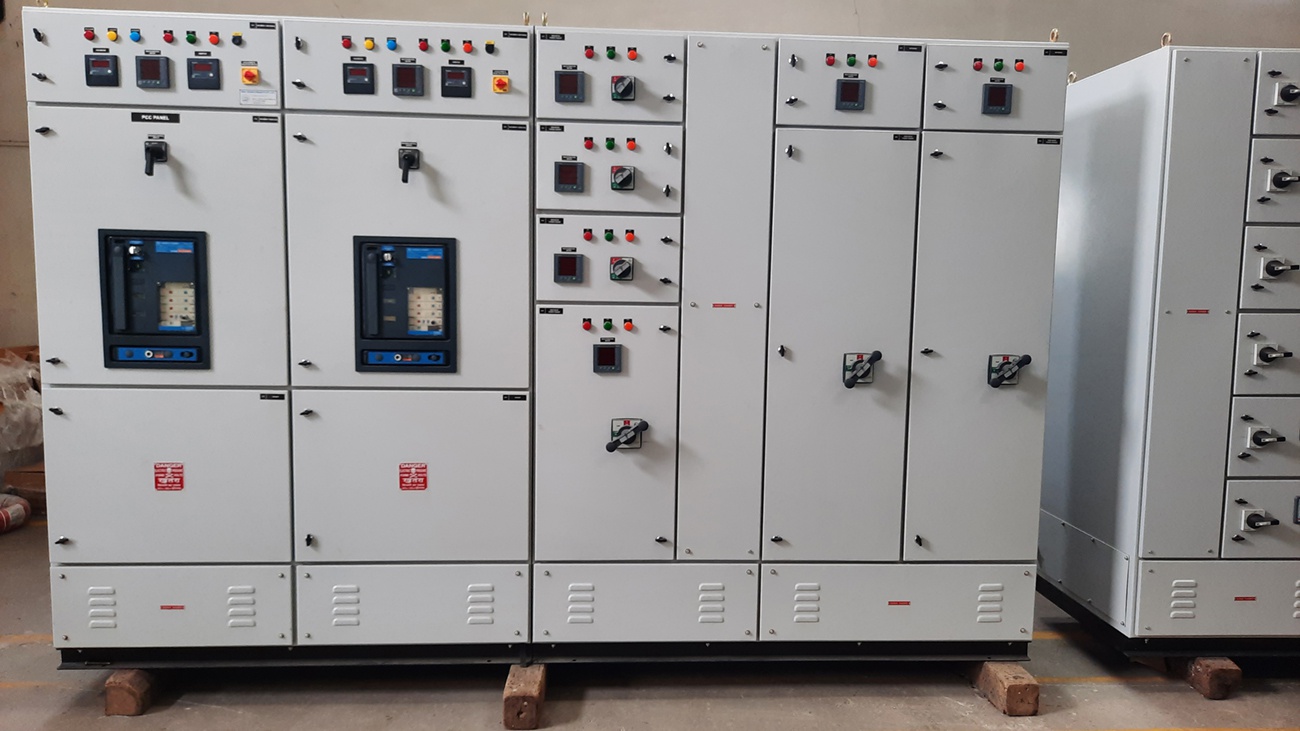

  • Power Control Centre (Pcc)

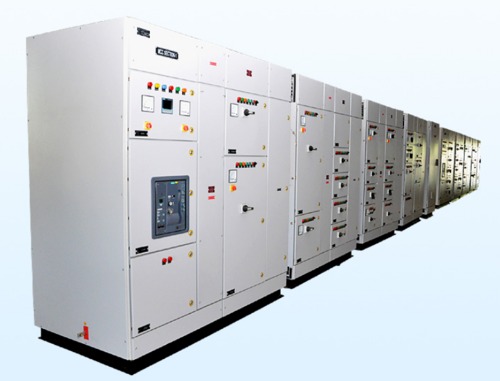

  • Motor Control Centre (Mcc)
  • Draw Out Pcc & Mcc Panel Single/Double Front
  • Amf Panels For D.G Set
  • D G Synchronizing Panel With Auto Load Shearing
  • Auto Source Changeover System Panel
  • Engine Control Panel
  • Fire Fighting Panel
  • Hvac Starter Panel
  • Stainless Steel Panel /Db's
  • Starter/Mccb Enclousers indoor/Outdoor
  • Control &Relay Panel
  • VFD Starter Panel Dol/ Stardeltawith Bypass Contactor Feeder Pillars
  • Control Desk, Mimic Panel, Annunciator Panel

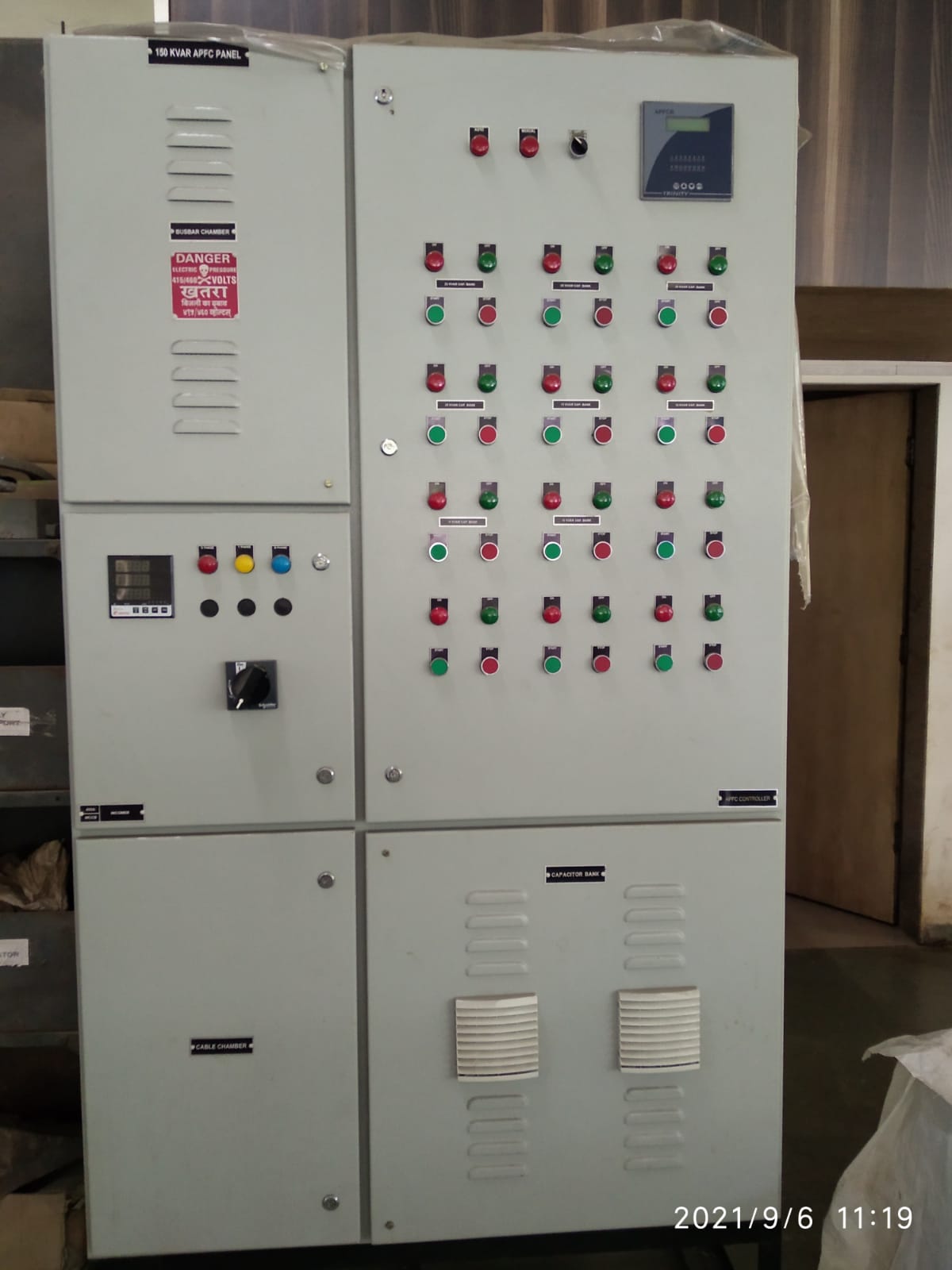

  • Automatic Power Factor Correction Panel
  • PLC Logic Based Process Control Panel
  • Metering & Monitoring Solution System Panel
  • Air Insulated Busduct Indoor / Outdoor
  • Rising Mains Air Insulated Indoor / Outdoor

Plant & Machinery

Major Machinaries
  • CNC Power Shearing Machine 2500mm x 5mm 1 NO
  • CNC Bending Machine (Press Brake) 2500mm x 5mm 1 NO
  • NC Bending Machine (Press Brake) 2500mm x 5mm 1 NO
  • 100 Ton Mechanical Power Press 1 NO
  • 20 Ton Mechanical Power Press 1 NO
  • Cutting Machines 2 NOS
  • 450 Amps C02 Welding 2 NOS
  • Arc Welding Machines 8 NOS
  • Stand Drill up to 25mm 6 NOS
  • Bench Grinders 3 NOS
  • Sanders 1 NO
  • Buffing Machine 1 NO
  • Hydraulic busbar processing machine with capacity to bend, cut and process busbar 1 NO
  • Ferrule Printing Machine 2 NOs
  • Label Printing Machine 1 NO.
Testing Equipments
  • Integrated Test Bench with 5KV HV, 5 KV Digital Megger, mili Volt drop and power source. 1 SET
  • HV Test kit 2.5 KV 1 SET
  • Megger 1000V 1 NO
  • Primary Injection Kit 4000A AC 1 SET
  • Earth tester with accessories 1 NO
  • Digital Powder Coating thickness tester 2 NOS
  • Tong Tester 400 A. 2 NOS
  • Multi Meter (Digital). 6 NOS
  • DC Power Supply/ Variable 1 NO
  • Digital Thermometer 2 NOS
  • Ammeter Portable 2 NOS
  • Continuity Tester 10 NOS
  • Venire Caliper 1 NO
  • Multi Meter Analog 2 NOS
